Justin Hill's Dinette to Double Bed Conversion
Transforming the GMC dinette into a full size double bed.
[ First | Previous | Next
| Last ]

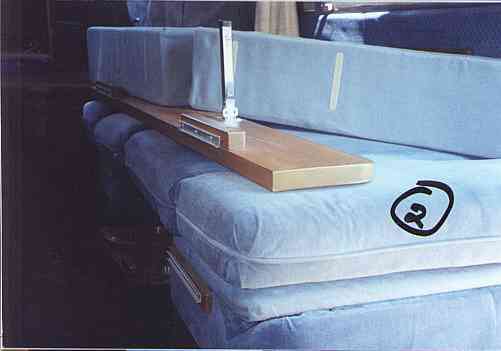

Picture 2: This shows both the wooden extension and the
'folding' cushion. Note the metal fastener on the 2x2. attached
to the bed extension. Although only one 2x2. is clearly visible
in the picture, there is another one on the other end too. Now
notice the wooden escutcheon attached to the end of the seat
with the other half of the metal catch on it. There is a also
another one on the end of the other dinette seat. The extension
rests on the first step up front and this determines where to
fasten the escutcheons to the end of the dinette seats.
