GMC Fire Suppression

Justin Hill's Engine Compartment Fire Supression System

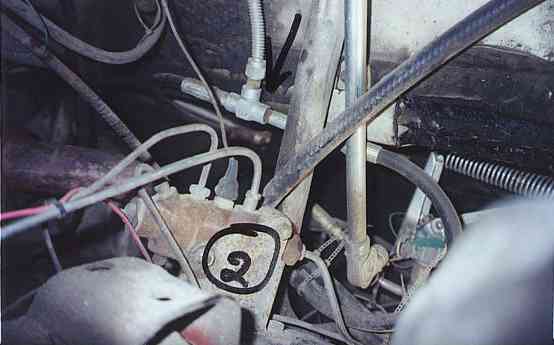

Picture 2: This shot is from the same general area. See the release spring in the background. Note the rubber hose which is attached to the CO2 extinguisher and carries the CO2 to a T where flex hose carries it to a nozzle on the left underside of the deck and the other hose from the T goes to a nozzle on the right underside of the deck. Notice also the vertical conduit carrying the cable mentioned in picture 1.
